SOUTH KOREA
Pipe Details
- Two 165-mm (6-inch) diameter bends experienced external corrosion
- Line Content: Hydrogen Sulfide
- Operating Temperature: 90°C (194°F)
- Operating Pressure: 166.7 bar (2417.77 psi)
Summary

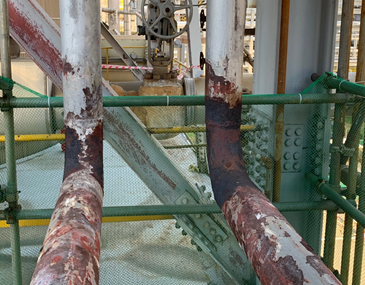

An inspection in a South Korea refinery uncovered corrosion on bends in two 165-mm (6-inch) diameter lines carrying hydrogen sulfide. The lines were operating at 90°C (194°F) under 166.7 bar (2417.77 psi) pressure, and the owner wanted a repair that could be carried out without interrupting operations. A team of 4 technicians repaired the corroded bends in only 2 days using ThermoWrap MT, a custom engineered repair system that uses a fiberglass, composite-reinforced coating to repair high-pressure, high-temperature lines.
An inspection in a South Korea refinery uncovered corrosion on bends in two 165-mm (6-inch) diameter lines carrying hydrogen sulfide. The lines were operating at 90°C (194°F) under 166.7 bar (2417.77 psi) pressure, and the owner wanted a repair that could be carried out effectively without interrupting operations. Having worked with CSNRI experts for four years, the owner immediately reached out for support.
The refinery owner requested ThermoWrap MT because of previous successes using the system for high-temperature, high-pressure (HPHT) repairs. ThermoWrap MT is a custom engineered system that uses a fiberglass, composite-reinforced coating to restore corroded and damaged piping in HPHT conditions. Because it is a wrap, it can be applied easily to complex geometries like the corroded bends.

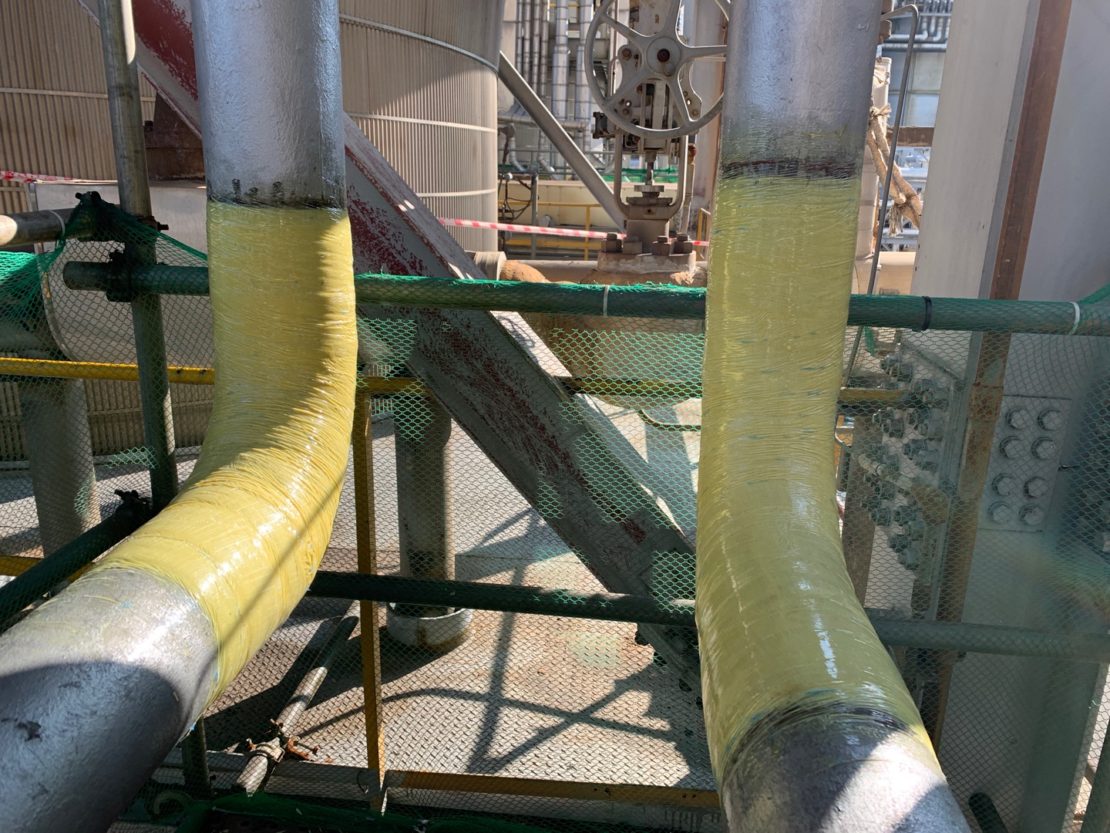

A team of 4 technicians mobilized to the site and prepared the surface of the corroded lines for the installation. When the lines were ready, they wrapped the 2 damaged sections – one 1.05 m (3.5 ft) long and one 0.75 m (2.5 ft) long – with ThermoWrap MT, completing the entire installation in only 2 days.
By relying on its relationship with CSNRI, the refinery owner was able to rapidly address an unsafe situation, repairing bends in the corroded hydrogen sulfide lines and restoring the plant to safety without any disruption to ongoing operations.
